Nozzle set option (% flow of reference nozzle set)

• The default value (100) represents the reference nozzle set.
• However, different input values may be used to simulate the relative flow of other nozzle sets at reference pressure.

Albuz ATR nozzle range example

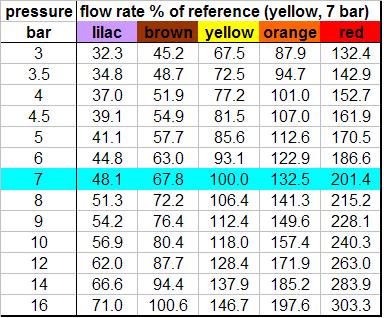

• The table below shows the nozzle flow rate, expressed as % of the reference (i.e. yellow nozzle at 7 bar).
• Any of the % reference flow rate values, highlighted in turquoise, may be inserted into the results table under the heading "nozz" to represent different nozzle characteristics when the reference nozzle is yellow (i.e. lilac=48.1, brown=67.8, yellow=100, orange 132.5, red 201.4).
